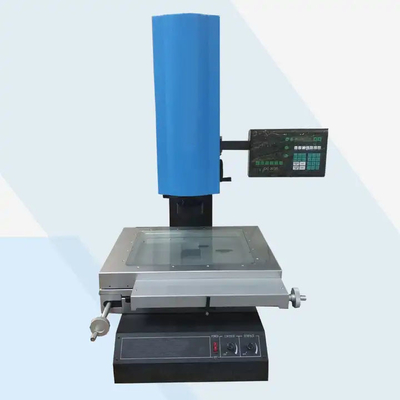

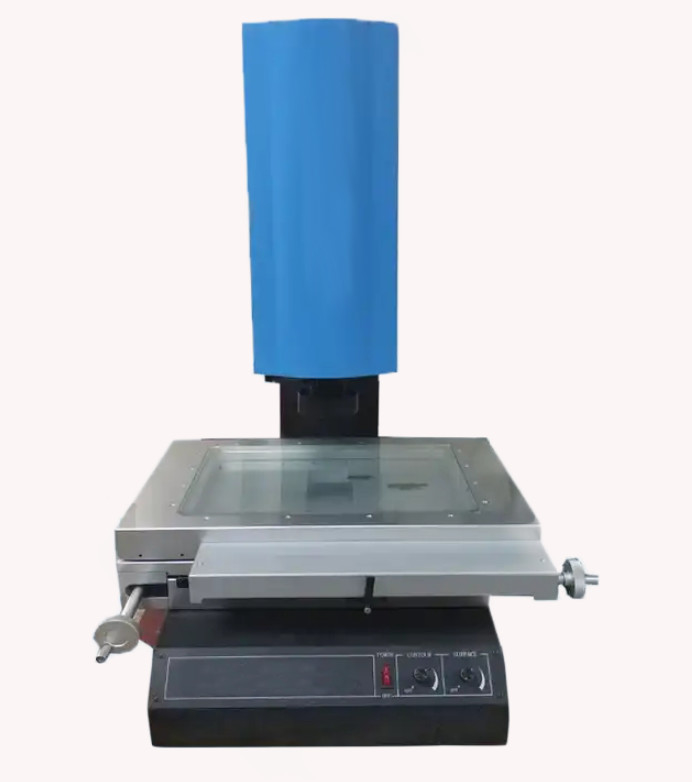

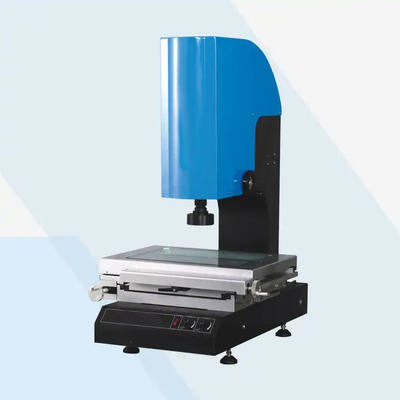

2d Vision Measurement Machine With A Measurement Accuracy Of 3um

2d Vision Measurement Machine With A Measurement Accuracy Of 3um
2d Vision Measurement Machine With A Measurement Accuracy Of 3um 2d Vision Measurement Machine With A Measurement Accuracy Of 3um 2d Vision Measurement Machine With A Measurement Accuracy Of 3um

Large Image :  2d Vision Measurement Machine With A Measurement Accuracy Of 3um

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE
Model Number: vision measurement system
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in foam firstly,and then reinforced with strong carton box for outer packing
Delivery Time: 7-10working days after received deposit
Supply Ability: 100 Set / Sets per Month

2d Vision Measurement Machine With A Measurement Accuracy Of 3um

Description
Warranty: 1 Year Place Of Origin: Guangdong, China
Application: Machinery,Electronics,Plastics And So On Material: Steel,Granite
Demension: 670x660x950mm WD: 92mm
Precision: 3um Load: 180KG
Highlight:

2d Vision Measurement Machine

,

3um Vision Measurement Machine

2d Vision Measurement System With A Measurement Accuracy Of (3+L/200) Um



Description:



Machine vision measurement system is composed of camera, lens, light source, image acquisition card and computer, through the image acquisition card the image of the measured object is transferred to the computer, after image processing, will obtain the measured object size, geometric shape and surface quality information for calculation and processing, and then according to the preset target parameters for automatic measurement or manual measurement. In the production process, the functional characteristics of the machine vision measurement system can be summarized through the use of the process. This paper mainly introduces the functional characteristics of machine vision measurement system.

It has been widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.


Features

1. It adopts TEO™ 1 / 3’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the professional video card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The data also can be exported in Excel, Word to generate reports for statistical analysis.
4. Grade 00 JINANQING granite base and column, high stability.



Technical Specifications And Parameters:



Specification

Model
GSA-2010
GSA-3020
GSA-4030
GSA-5040
Table
Metal Table Dimension(mm)
404*228
500*330
606*466
706*606
Glass Table Dimension(mm)
260*160
350*280
450*350
550*450
XY Stroke(mm)
200*100
300*200
400*300
500*400
Load Capacity
approx. 15 kg
approx. 20 kg
approx. 30 kg
approx. 35 kg
Weight (kg)
180
260
315
500
Dimension (L*W*H, mm)
556*540*860
670*660*950
720*950*1020
800*1040*1020
Measuring Targeting System
(Standard Accessories)
Camera: TEO™ 1 / 3’’ Color CCD Camera
Zoom Lens: professional optical lens
Magnification of field lens: 0.7~4.5X WD: 92mm
Video Magnification: 30~190X FOV: 7~1.1mm
Scale Resolution: 0.5 μm
Z Stroke(mm)
Standard
150
Option
200
200~350
200~450
Accuracy E1*
Ex, y ≤ (3.0+L/200) μm
Accuracy E2*
Exy ≤ (4.0+L/200) μm
Illumination
Surface light and transmission light adopt LED, brightness adjustable
Power
110/220V(AC), 50/60HZ 30W



2d Vision Measurement Machine With A Measurement Accuracy Of 3um 0

2d Vision Measurement Machine With A Measurement Accuracy Of 3um 1

2d Vision Measurement Machine With A Measurement Accuracy Of 3um 2



FQA:



1.Are your company a trading one or a factory ?


Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.

2.How to choose the most suitable products?



Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

3.What’s the delivery term?



At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are



in urgent need, we can consider making special arrangement for you.

4.Do you accept customization service?



Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your



requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?



Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

6.Do you have customers of our country before?



Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,



Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.

7.How about your warranty?



Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers



may go to your place for better service.

8.How about the packing for machine, is it safely protected during transportation?



Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air



without damage.

9.What is the order process?



Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -



delivery - customer receiving - after service.

10.How to install and use the product



The product is shipped with an operating instructions and video of English version.
