Product Details:
|
Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
---|---|---|---|
Dimensions: | 770*810*1120mm | Screen Rotary Range: | 0°~360° |
Working Distance (mm): | 77.7 44.3 38.4 25.3 | Power: | Electronic, 110V/220V(AC), 50/60HZ, |
Resolution (X-axis,Y-axis): | 0.001 Mm | Certification: | CE |
High Light: | 220V Vision Measurement System,CNC Closed Loop Vision Measurement System |

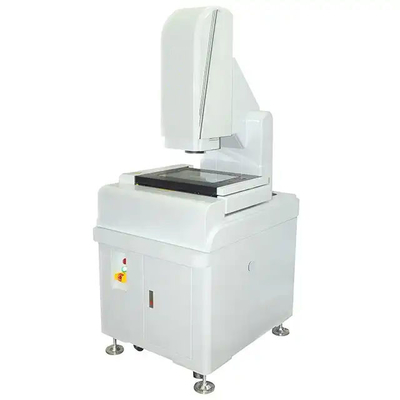

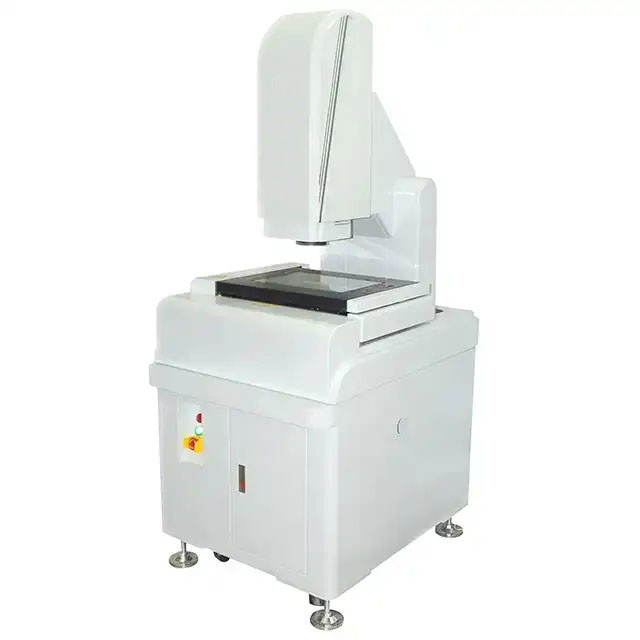

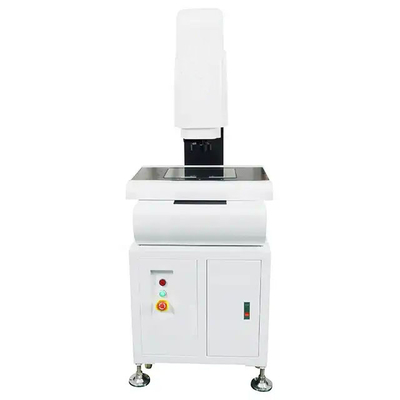

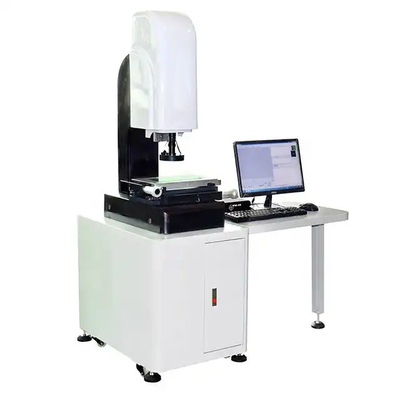

Ultra High Resolution Optical Vision Measurement System CNC Closed-Loop Control
Description:
Optical vision testing instruments can be used to detect defects in various products or measure dimensions, like laser three-dimensional scanner, through scanning the three-dimensional data of the surface of the measured object, can directly measure dimensions or some form and position tolerances, help enterprises find product defects faster and do a good job of product quality control.
Chinese Academy of Sciences Guangzhou Electronic Science and Education and Intelligent Manufacturing Department has been focusing on the development and research of three-dimensional scanning technology, with the popularity of industrialization and intelligent equipment, also launched a new automatic optical detection equipment.
The precision of this automatic optical detection equipment is better than 0.025mm. After planning the scanning path of the measured object through the CONTROL programming software of the numerical control system, CASAIM CONTROL can be fully automated scanning and output the detection report with one key. It provides accurate 3D testing data support for product development, production, assembly, quality control and other application scenarios of manufacturing enterprises.
Item
|
GSA621-300
|
GSA621-400
|
GSA621-500
|
|
Dimension(mm)( L * W * H )
|
1600*780*1700
|
1750*920*1700
|
1900*1080*1700
|
|
Measuring range (mm)( X * Y * Z )
|
300*200*200
|
400*300*200
|
500*400*200
|
|
Measuring Accuracy ( µ m )
|
2.5+L/200
|
2.5+L/200
|
2.5+L/200
|
|
Repeatability ( µ m )
|
2.5
|
2.5
|
2.5
|
|
Weight ( kg )
|
320kg
|
390kg
|
460kg
|
|
Image and Measuring
|
CCD
|
Industrail grade color CCD camera
|
||
Lens
|
Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
|
|||
Magnification
|
18-195X ( For reference only. With different camera and lens the magnification
|
|||
Field of View
|
8.1~1.3mm
|
|||
Working distance
|
108mm
|
|||
Linear scale resolution
|
0.5 µ m ( 0.1µ m for option )
|
|||
Driving system
|
CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control.
|
|||
Illumination
|
Programmable 8 sections LED surface light 40 section LED ring light, co-axaillight,movable mult color ring light for option.
|
FQA:
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your
requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,
Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air
without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -
delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
